Fuel Tank Valve Intelligent Electronic Lock High Security Valve Lockout Seal

  • 1
  • 2

Brand Name : Jointech

Model Number : JT802

Certification : CE,ISO9001:2015, ATEX, IEC EX

Place of Origin : Guandong,China

MOQ : 2 unit

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000 units per month

Delivery Time : 2-7 days

Packaging Details : Carton/wooden box/ customized

Product name : Fuel Tank Valve Sealing System High-security Valve Lockout Seal

Weight : 2400g

Waterproof : IP67 protection grade

unlocking : Remote unlock, nearby Bluetooth, Physical key

Function : tanker manhole cover & valve Bluetooth smart lock

Application : Oil tank trucks, fuel tankers

Standard battery : 4000 mAh, 2 years life

Brand : OEM brand

Warranty : 12months

Dimension : 248.5*190.1*165mm

Feature : Remote control Slave unlock

Contact Now



Fuel Tank Valve Sealing System High-security Valve Lockout Seal



In recent times, there has been an increasing demand for monitoring oil tanks due to the transportation of oil and rising oil prices. However, a challenge has emerged regarding the scarcity of locks meeting the stringent ATEX certification requirements in oil storage and transport environments.



To address this need, Jointech has developed the JT802 valve lock, becoming the first company to satisfy both ATEX and IEC EX certification standards. The development process took two years and involved multiple iterations and refinements.



The JT802 is an intelligent electronic lock specifically designed to enhance the security of oil tanker valves. It offers advanced features for intelligent control of valve lock operations, supporting unlocking methods like Bluetooth, remote Lora master, or a physical key. With a battery life of up to two years, it can operate autonomously or in conjunction with a master lock to manage multiple valves simultaneously.



For more information and detailed case studies, please feel free to contact us.


Features:

  • Remote and Bluetooth wireless communication

  • Anti-explosion certification(ATEX+IEC EX)

  • Low power consumption, >=2 years working life

  • Smart unlock and backup physical unlock

Type

Function

Basic Function

Transmission mode

Lora, remotely

Lock status detecting

Real time

Unlock option

Remote/Bluetooth

Data info

Lock status; unlock case; left power

Data storage

1000 pcs

Alarms

Low power

Valve remove

Top Cover open

Manual lock cover open

Offline alarm (valid with JT701D master)

Battery management

Low power working mode

Sleep mode

Low power deep sleep mode

Battery life

2 years

[suppose 10 unlock per day]

Basic Function

Wake-up resource

Bluetooth unlock

Manual lock cover open

RTC

Valve remove

Manual wake-up

Parameters

Dimension

248.5*190.1*165mm

Weight

2400g

Working and storage temp

-20℃~60℃

Relatively humidity

95%

Battery

4000mAh

Protection

IP67 protection grade

Average working current

16mA

Standby working current

50uA

Certification

IECEx: Ex ib IIB T4 Gb

ATEx: II 2 G Ex ib IIB T4 Gb

Fuel Tank Valve Intelligent Electronic Lock High Security Valve Lockout Seal

Fuel Tank Valve Intelligent Electronic Lock High Security Valve Lockout Seal

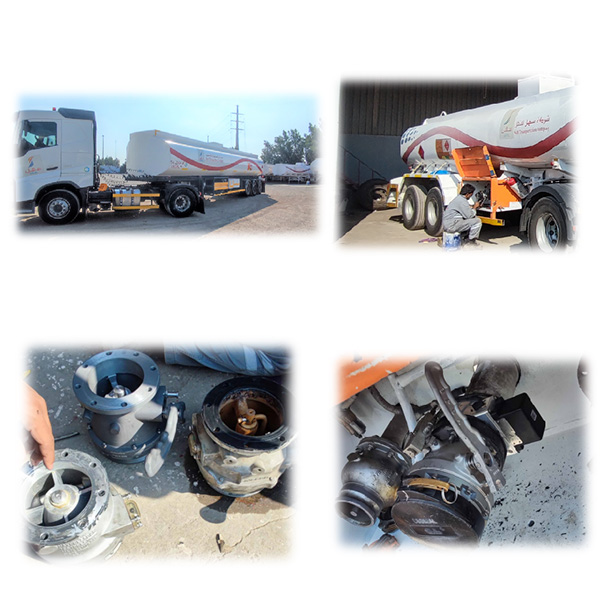

Unique for Oil tank truck ATEX smart gps lock Customized Service:

  • Integrated Door Magnetic induction, easy installation

  • Bluetooth/Remote authorization control

  • Alarm when open the door illegally

  • Unique label customization with your brand

Joint Cloud tracking platform for oil tank truck lock and unlock remote control

  • Real-time tracking GPS container lock

  • Track trace reply

  • Reports of tracking detail, alarms, driving behavior...

  • Unlock and unlock case recording

  • Remote control

  • Unlock in certain Area only

Fuel Tank Valve Intelligent Electronic Lock High Security Valve Lockout Seal

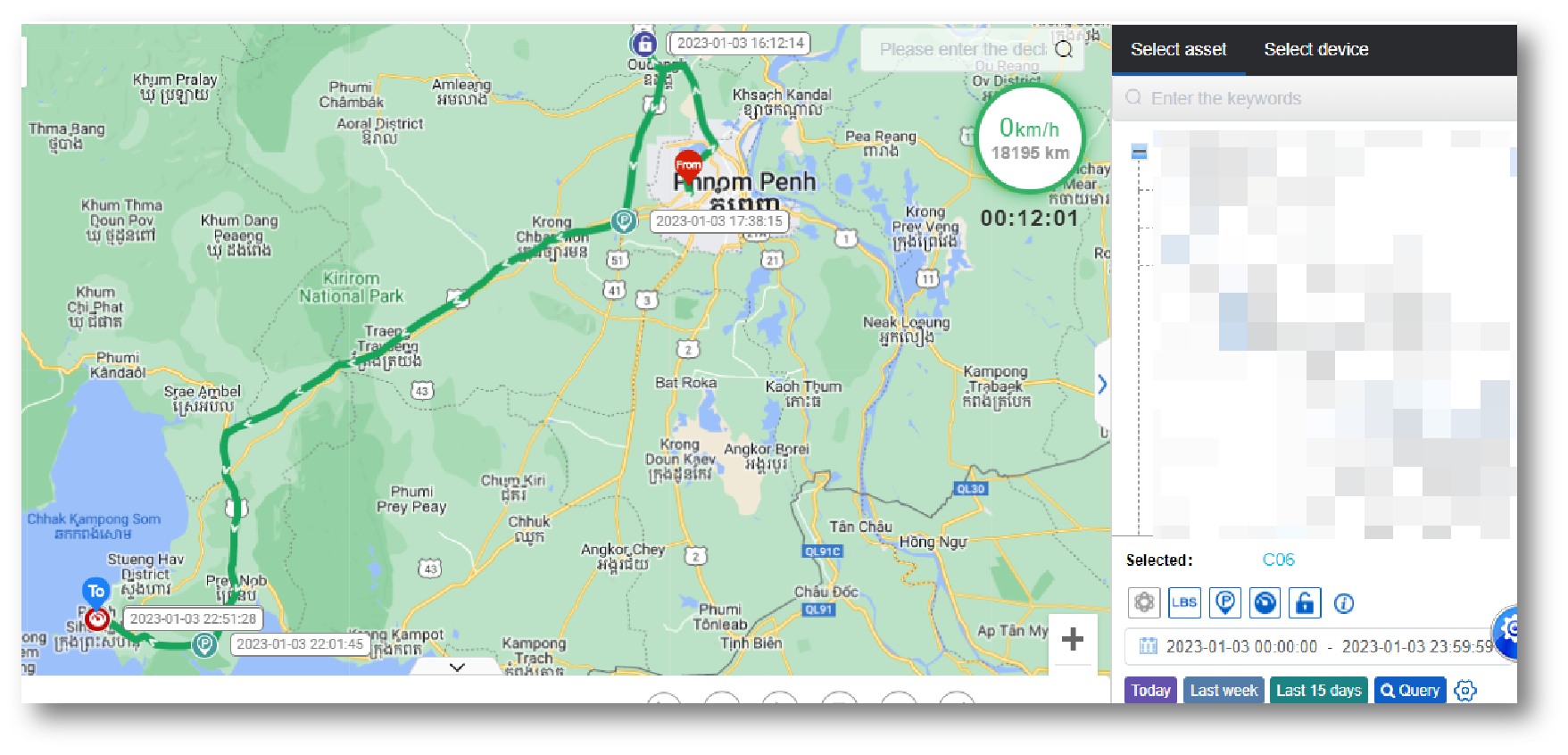

Jointech Friendly Tracking Platform

Fuel Tank Valve Intelligent Electronic Lock High Security Valve Lockout Seal

For any questions welcome to contact me for more details: Cindy (+86 135 9019 5821)
